Why RIM Urethanes? Understanding the Engineering Advantages of Reaction Injection Molded Polyurethanes

When design engineers face challenging requirements for large, complex plastic components, traditional manufacturing approaches often fall short. Injection molding becomes prohibitively expensive for low volumes, while thermoforming lacks the structural capability for demanding applications.

This is where reaction injection molded (RIM) urethanes demonstrate their unique value proposition.

RIM urethanes represent a distinct category of manufacturing technology that bridges the gap between prototype-level processes and high-volume production methods. By understanding the fundamental advantages of this chemistry and process combination, engineers can unlock design possibilities that simply aren't achievable through other means.

The Chemistry Behind the Performance

RIM urethanes derive their exceptional properties from the unique polymerization process that occurs within the mold. Unlike thermoplastics that are melted and injected, or thermosets that cure from a solid state, RIM urethanes begin as two low-viscosity liquids that react chemically to form the final polymer structure.

This liquid-to-solid transformation enables molecular-level control over the final material properties. By adjusting the chemical formulation, engineers can tailor characteristics ranging from Shore A flexibility to rigid structural foam densities. The resulting materials exhibit exceptional impact resistance, superior chemical compatibility, and outstanding dimensional stability across wide temperature ranges.

The exothermic reaction that drives polymerization creates a self-skinning effect in many formulations, producing parts with dense, durable outer surfaces and lighter-weight cellular cores. This natural sandwich construction delivers remarkable strength-to-weight ratios without requiring complex manufacturing steps.

Unmatched Design Freedom

The low-viscosity nature of RIM urethane components enables design possibilities that challenge conventional manufacturing limitations. Complex internal geometries, varying wall thicknesses, and intricate surface details can be molded with precision that rivals much more expensive processes.

Wall thickness variation represents one of the most significant advantages. While injection molding typically requires uniform wall sections to prevent flow imbalances and quality issues, RIM urethanes can accommodate thickness variations from 0.125 inches to over 2 inches within a single part. This capability allows engineers to place material exactly where structural performance is needed while minimizing weight in non-critical areas.

The ability to mold large parts as single components eliminates assembly requirements and potential failure points. Agricultural equipment manufacturers routinely produce RIM urethane components exceeding six feet in length, creating structural housings that would require multiple pieces and complex joining methods using alternative materials.

Process Economics That Make Sense

The economic advantages of RIM urethanes become apparent when considering total project costs rather than just material expenses. The low-pressure nature of the process—typically 50-150 psi compared to thousands of pounds for injection molding—enables the use of aluminum tooling instead of hardened steel.

This tooling approach reduces upfront investment by 50-70% compared to injection molding tools of similar complexity. More importantly, aluminum molds can be modified and refined much more easily than steel tools, providing flexibility during product development and allowing for design optimization based on real-world testing.

Lead times for RIM tooling typically range from 4-8 weeks compared to 12-20 weeks for comparable injection molding tools. This acceleration in the development timeline can provide crucial competitive advantages in fast-moving markets.

For production volumes between 100-5,000 parts annually, RIM urethanes often deliver the lowest total manufacturing cost. The break-even point where injection molding becomes more economical typically occurs around 5,000-10,000 units, depending on part complexity and material requirements.

Encapsulation Capabilities

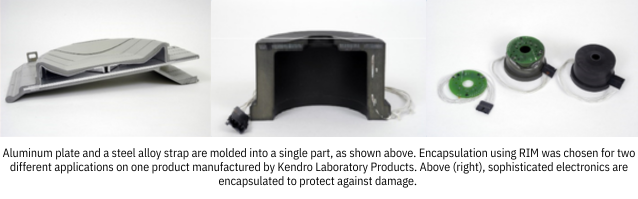

One of the most powerful features of RIM urethanes is their ability to encapsulate other materials and components during the molding process. The low processing temperatures and pressures preserve the integrity of sensitive electronic components, while the excellent adhesion characteristics of urethane chemistry create permanent bonds with metal reinforcements.

Medical device manufacturers leverage this capability to create sealed enclosures that protect sensitive diagnostic equipment while providing the biocompatible surfaces required for healthcare applications. The encapsulation process eliminates the need for separate sealing operations and creates tamper-evident designs that meet regulatory requirements.

Structural reinforcement through metal encapsulation allows RIM urethane parts to carry loads that would exceed the capabilities of the polymer alone. By strategically placing steel or aluminum reinforcements within the mold cavity, engineers can create hybrid components that combine the corrosion resistance and design flexibility of urethanes with the structural performance of metals.

Surface Quality and Finishing Options

RIM urethanes accept a wide range of finishing techniques, from textured surfaces that eliminate the need for painting to mirror-smooth finishes suitable for optical applications. The reproduction fidelity of the process captures even fine details molded into the tool surface.

In-mold coating processes can apply decorative or protective finishes during the molding cycle, eliminating secondary painting operations. This capability is particularly valuable for large components where conventional painting would require substantial equipment investment and environmental controls.

The chemical structure of cured RIM urethanes provides excellent paint adhesion without primers or surface treatments. Automotive manufacturers have used this characteristic for decades to create body panels that match painted metal components perfectly while providing superior impact resistance.

Material Property Tailoring

The versatility of RIM urethane chemistry enables precise property optimization for specific applications. Formulations can be adjusted to provide:

Chemical resistance suitable for industrial environments with exposure to acids, bases, and organic solvents. Environmental testing demonstrates superior performance compared to many thermoplastics in harsh chemical environments.

Temperature performance ranging from cryogenic applications to continuous service temperatures exceeding 200°F. The crosslinked structure of thermoset urethanes maintains mechanical properties across these temperature extremes.

Electrical properties spanning from conductive formulations for EMI shielding to high-dielectric-strength insulators for electrical enclosures. The ability to incorporate conductive fillers or maintain insulating properties provides design flexibility for electronic applications.

When RIM Urethanes Excel

The combination of processing advantages, material performance, and economic benefits makes RIM urethanes particularly well-suited for specific applications. Large structural components that require complex geometries benefit from the design freedom and single-piece molding capability.

Protective enclosures that must withstand impact while providing environmental sealing leverage both the material properties and processing capabilities of RIM urethanes. The ability to mold in attachment points, sealing surfaces, and reinforcement features creates integrated solutions that reduce assembly complexity.

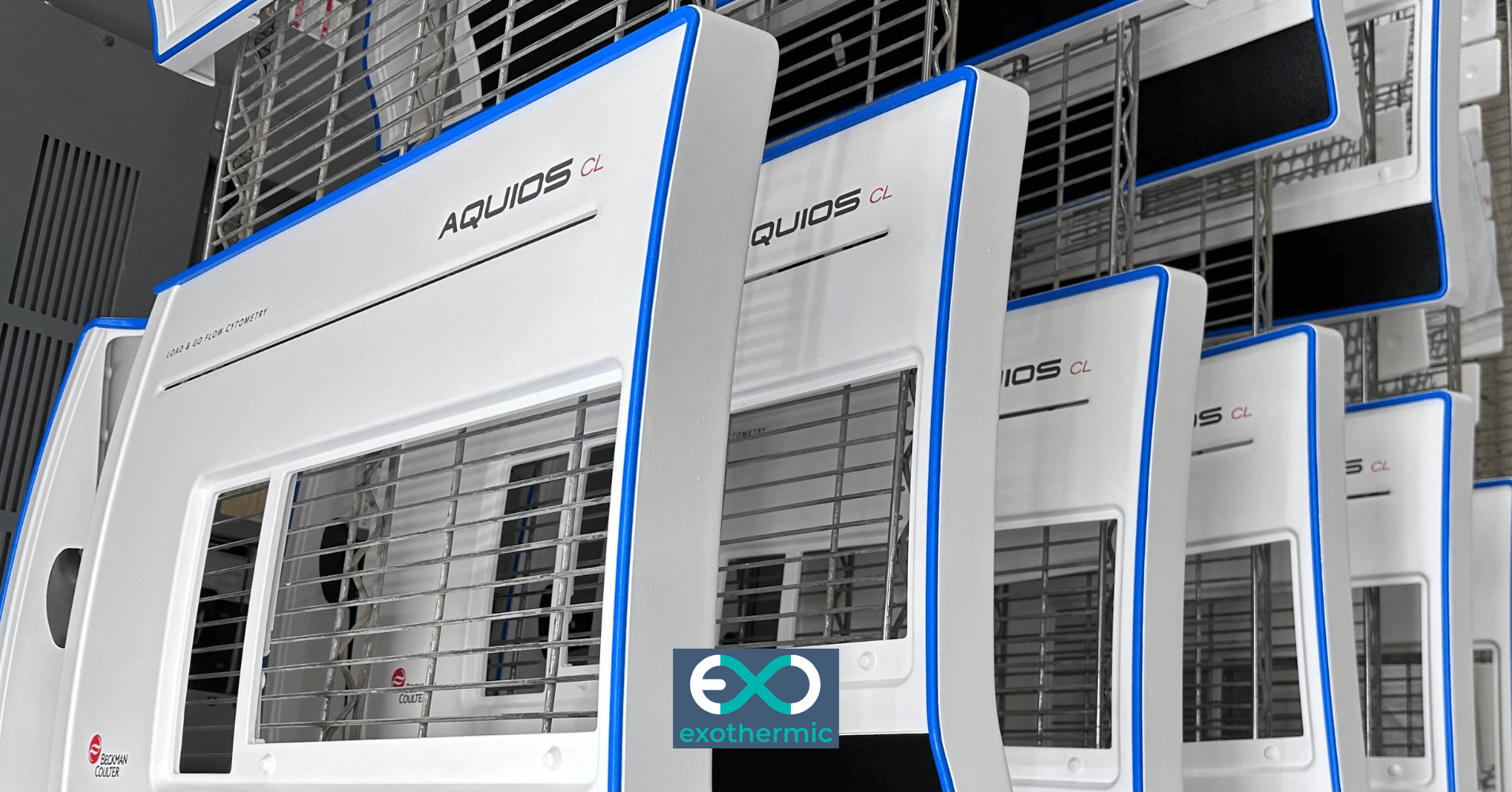

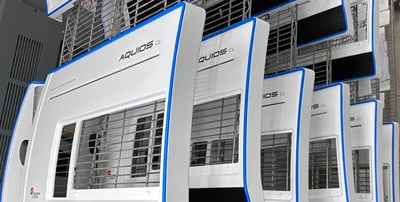

Medical and laboratory equipment manufacturers value the biocompatibility, chemical resistance, and precision molding capabilities for diagnostic instrument housings and sample handling systems.

Transportation applications, from agricultural equipment to recreational vehicles, utilize the durability, chemical resistance, and design flexibility of RIM urethanes for both structural and aesthetic components.

The Strategic Manufacturing Choice

RIM urethanes represent more than just another material option—they enable a fundamentally different approach to component design and manufacturing. By understanding the unique capabilities of this technology, engineers can develop solutions that would be impossible or economically unfeasible using conventional approaches.

The key to success with RIM urethanes lies in recognizing applications where the process advantages align with project requirements. When design complexity, production volume, and performance demands fall within the optimal range for RIM technology, the results often exceed expectations while delivering significant cost and time advantages.

For engineers facing the challenge of creating large, complex, high-performance components within reasonable cost and timeline constraints, RIM urethanes offer a proven path to success. The technology continues to evolve, with new formulations and processing techniques expanding the boundaries of what's possible in advanced polymer manufacturing.
