When engineers must manufacture large plastic parts with complex geometries, variable wall thicknesses, and high-quality surface finishes, they often face significant challenges with traditional manufacturing methods. Reaction Injection Molding (RIM) offers a compelling solution that addresses these challenges while delivering exceptional results.

Understanding Reaction Injection Molding (RIM)

Reaction Injection Molding is a specialized manufacturing process developed in the late 1960s as an alternative to traditional plastic molding methods. Unlike thermoplastic injection molding, which uses high temperatures and pressures to force melted plastic into steel molds, RIM combines two low-viscosity liquid components (an isocyanate and a polyol) under low-pressure and temperature conditions.

The process begins with these liquid components being mixed and injected into a lightweight aluminum or epoxy mold. Inside the mold, they undergo an exothermic chemical reaction, polymerizing into polyurethane. The low viscosity of the liquids (typically 500-1500 centipoise) and the relatively low processing temperature (90-105°F) allow the mold to fill in as little as one second, even at modest molding pressures of only 50-150 psi.

Why RIM Excels for Large Molded Plastic Parts

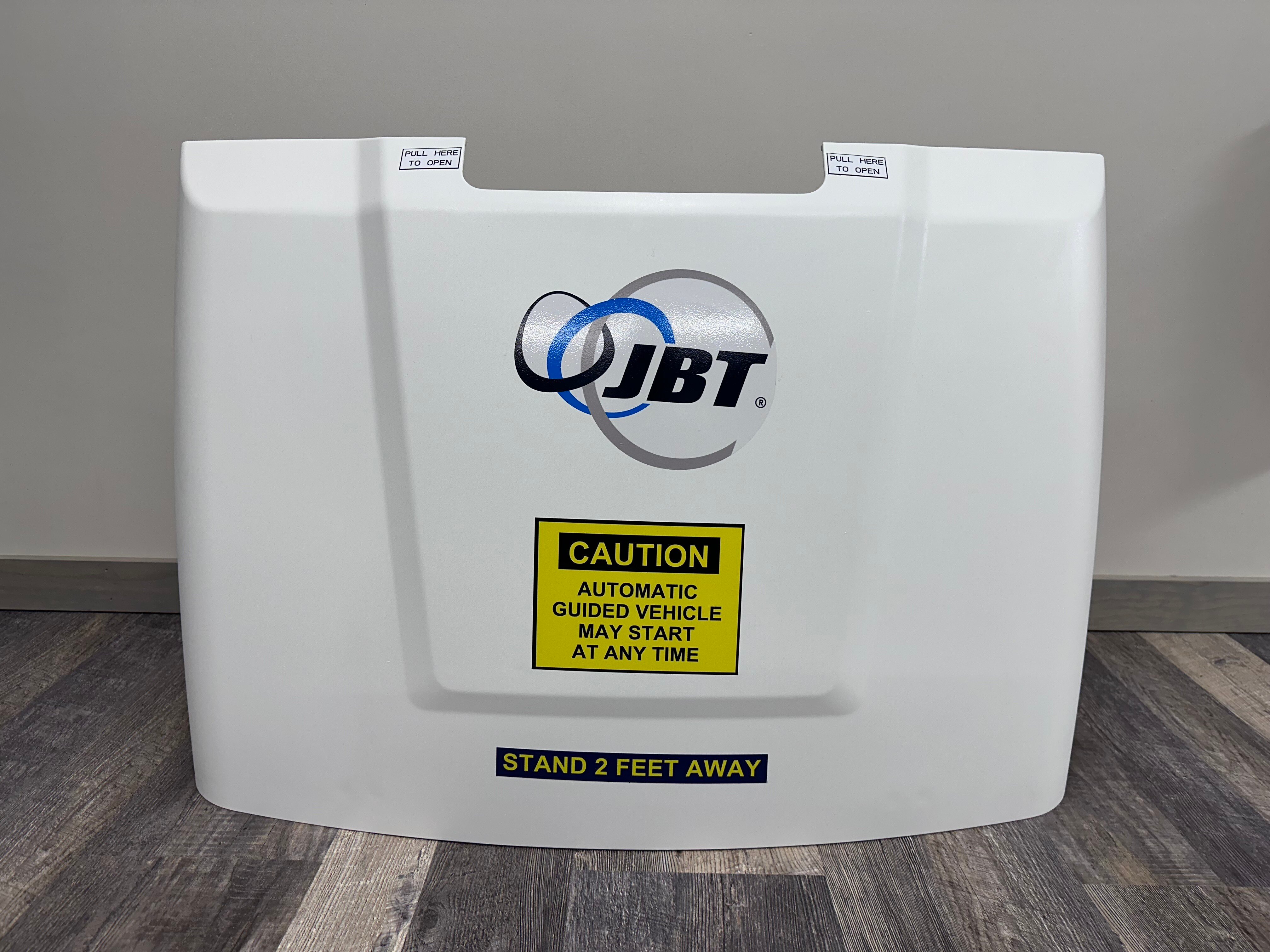

JBT Shield Straight Front (1)Unmatched Size Capabilities

The ability to create exceptionally large parts is one of RIM's most significant advantages. The low viscosity of the component chemicals allows large molds to fill quickly and completely, making it possible to produce parts as single pieces where other technologies would require multiple components to be molded and assembled separately.

Major agricultural equipment manufacturers have leveraged this capability to create massive one-piece components. For example, some combine feature rear shields measuring 6 feet by 6 feet, while others incorporate panels exceeding 8 feet in length—dimensions that would be prohibitively expensive or technically impossible with traditional molding processes.

Design Freedom with Variable Wall Thickness

Unlike thermoplastic molding or thermoforming, RIM allows for significant variation in wall thickness throughout a single part. Because the polyurethane components remain liquid during the filling process, sections ranging from 1/8-inch to 1-1/4-inch thick can be filled with equal ease. This flexibility eliminates many design constraints and allows engineers to optimize wall thickness for strength where needed and reduce it elsewhere to minimize weight and material use.

Medical equipment manufacturers have taken advantage of this capability to create complex enclosures with wall thicknesses varying from 0.09 to 0.40 inches within the same part—a feature that would present significant challenges for other molding technologies.

Structural Integrity and Performance

RIM parts can function as both structural and aesthetic components, eliminating the need for separate support structures. The flowability of the polyurethane materials allows intricate ribbing to be easily molded into parts, enabling them to act as their own support structure even at large sizes.

The resulting polyurethane material offers an impressive combination of properties that can be optimized for specific applications:

  • Impact resistance and flexibility

  • Dimensional stability across a wide temperature range

  • Chemical and corrosion resistance

  • Excellent surface finish quality

  • Electrical insulation properties

  • Fire retardancy capabilities

  • Weather resistance

Material Encapsulation Capabilities

Another significant advantage of RIM for large parts is the ability to encapsulate other materials and components. The low pressure and temperature of the process, combined with the highly adhesive nature of polyurethane, allow complex parts to be encapsulated without deformation or damage.

This capability serves two primary purposes:

  1. Structural enhancement: Metal, carbon fibers, or glass fibers can be embedded in the part for added rigidity, extending RIM's applications into areas where polyurethane alone might not provide sufficient strength.

  2. Protection of components: Delicate elements such as circuit boards, sensors, and wiring harnesses can be safely encapsulated without damage, providing both physical protection and security benefits.

Superior Surface Finish

The low viscosity of RIM materials allows for precise reproduction of fine details in the mold, resulting in high-quality surface finishes. RIM parts excel at taking paint or other coatings, making them ideal for applications where aesthetics are important.

For parts with simple geometries, in-mold painting can further enhance efficiency. By applying polyurethane paint to the mold before the main shot of polyurethane is injected, manufacturers can create parts that emerge from the mold with a complete exterior finish, eliminating secondary operations.

Cost Advantages for Large Part Production

While material costs for RIM can be higher than those for some thermoplastic processes, the overall economics often favor RIM for large parts, particularly in low to medium production volumes (typically 100-5,000 parts annually).

Lower Tooling Costs

The low temperature and pressure requirements of RIM allow for the use of less expensive mold materials, such as aluminum or epoxy, rather than hardened steel. For large parts, this difference can be substantial:

  • RIM mold costs are typically 50-60% lower than comparable thermoplastic injection molds

  • Lead times for RIM molds are significantly shorter (often 4-6 weeks compared to 12-16 weeks for steel molds)

  • Modifications to RIM molds are more straightforward and less expensive

Reduced Equipment Requirements

RIM's lower processing pressures mean that smaller, less expensive presses can be used even for very large parts. Energy consumption during processing is also considerably lower compared to thermoplastic injection molding.

Part Consolidation

By enabling the production of large, complex parts as single components, RIM reduces or eliminates assembly operations and their associated costs. A single RIM part can often replace multiple components that would otherwise need to be produced separately and assembled.

Ideal Applications for Large RIM Parts

RIM's unique capabilities make it particularly well-suited for large parts molded parts in several industries:

Medical Equipment

Large medical devices such as MRI and CT scanner housings, laboratory equipment enclosures, and diagnostic machine covers benefit from RIM's combination of size capability, aesthetic quality, and ability to encapsulate electronic components.

Transportation

From agricultural equipment panels and fenders to bus components and specialized vehicle parts, RIM provides the durability and impact resistance needed in transportation applications while maintaining excellent appearance and dimensional stability.

Industrial Equipment

Large housings, guards, and covers for industrial machinery leverage RIM's structural properties and chemical resistance while keeping weight manageable compared to metal alternatives.

Renewable Energy

Wind turbine components, solar equipment housings, and other renewable energy applications benefit from RIM's weather resistance and dimensional stability in varying environmental conditions.

Choosing the Right Manufacturing Process

While RIM offers compelling advantages for large plastic parts, it's important to consider when other processes might be more appropriate:

  • For very high production volumes (typically over 10,000 parts annually), thermoplastic injection molding may provide lower per-part costs despite higher tooling investments.

  • For extremely simple geometries with minimal detail requirements, thermoforming might offer a more economical solution.

  • For applications requiring specialized high-performance engineering plastics not available in RIM formulations, other processes may be necessary.

The Future of Large Molded Plastic Parts

As industries continue to demand larger, more complex, and more integrated plastic components, RIM technology continues to evolve. Advances in materials science have introduced new polyurethane formulations with enhanced properties, such as Poly-DCPD, which offers superior strength, chemical resistance, and temperature performance.

These innovations are expanding RIM's potential applications and pushing the boundaries of what's possible in large part production. Coupled with developments in computer-aided design and simulation tools, these advances are making RIM an increasingly attractive option for engineers seeking to maximize performance while minimizing costs for large molded plastic parts.

Next Steps

Reaction Injection Molding offers a unique combination of design freedom, production efficiency, and performance benefits for manufacturers facing the challenge of producing large, complex plastic parts in low to medium volumes.

By understanding RIM's capabilities and advantages, engineers can make informed decisions about the most appropriate manufacturing process for their specific applications, potentially realizing significant cost and performance improvements.

If you're designing large plastic components with complex requirements, consider exploring how RIM might transform your approach to manufacturing. Combining size capability, design flexibility, and cost efficiency could provide the competitive edge your products need.
