Mastering RIM Molding Design: Unlocking Advanced Manufacturing Solutions

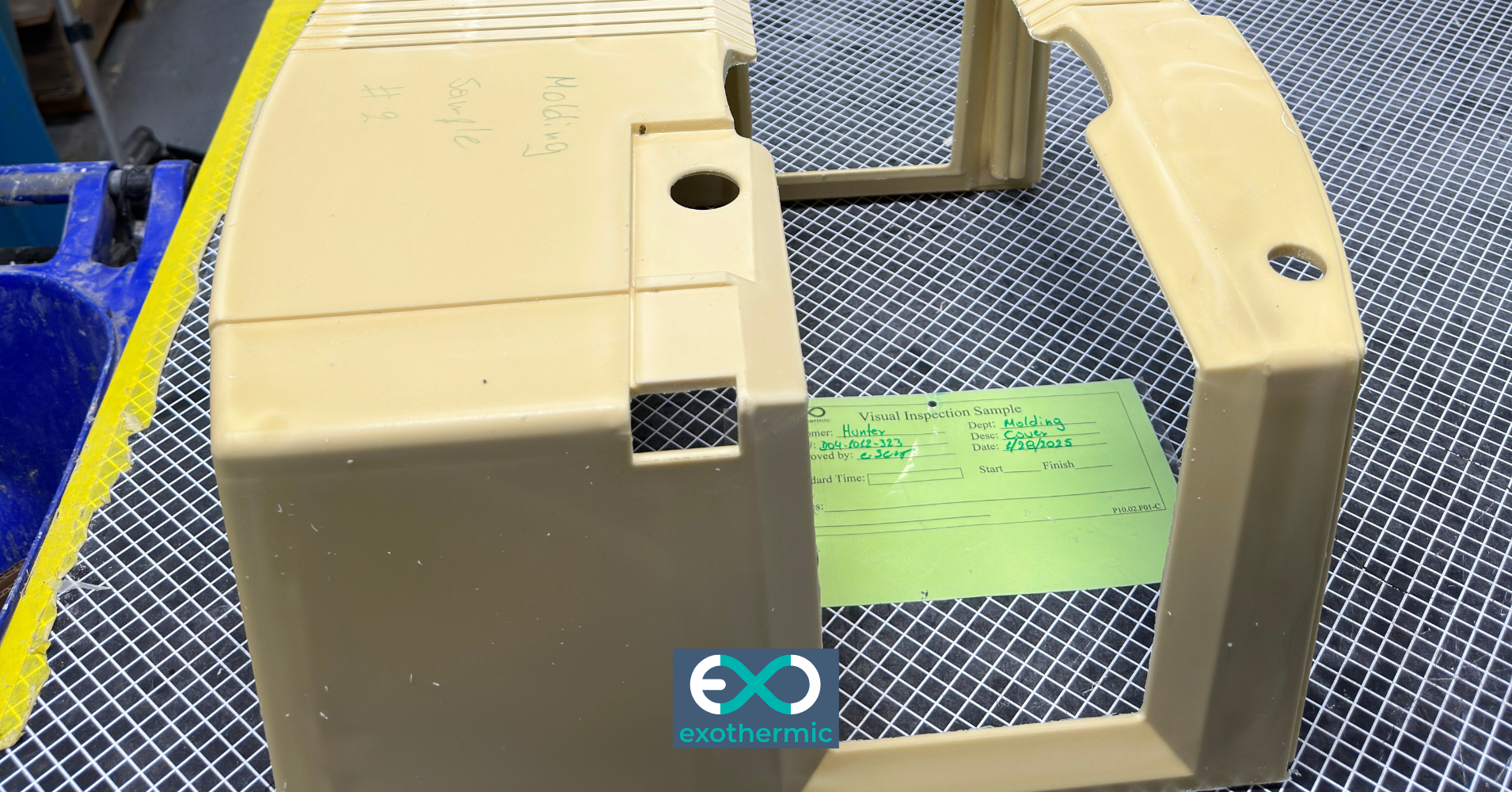

Featured Image
Mastering RIM Molding Design: Unlocking Advanced Manufacturing Solutions
13:11

Engineers and designers constantly seek production methods that balance quality, cost-effectiveness, and design freedom in today's competitive manufacturing landscape.

Reaction Injection Molding (RIM) has emerged as a powerful solution for companies needing complex, high-performance plastic parts in low to medium volumes.

Understanding Reaction Injection Molding

Reaction Injection Molding represents a fundamentally different approach to plastic part production compared to traditional methods. Unlike thermoplastic injection molding, which forces melted plastic pellets into a steel mold under high temperature and pressure, RIM combines two low-viscosity liquid components—typically an isocyanate and a polyol—that chemically react within the mold to form a thermoset polyurethane part.

The chemistry behind RIM involves an exothermic reaction where the liquid components polymerize inside the mold cavity. With component viscosities ranging from 500-1500 centipoise and processing temperatures between 90°-105°F, most molds fill in seconds at pressures of only 50-150 psi. This low-pressure, low-temperature process creates opportunities for design innovations that simply aren't possible with conventional molding techniques.

RIM's versatility stems from the ability to customize material formulations. By adjusting the chemistry, manufacturers can optimize physical properties including flexibility, strength, dimensional stability, surface hardness, wear resistance, sound/vibration dampening, thermal insulation, and chemical resistance.

Why RIM Molding Excels for Complex Design Requirements

When evaluating manufacturing processes, RIM stands out in five critical areas:

1. Superior Large Part Production

Traditional manufacturing processes often struggle with large components, but RIM thrives in this space. The low viscosity of the liquid components allows molds to fill quickly and completely regardless of size, enabling single-piece production where other technologies would require multiple parts and assembly.

A prime example comes from the agricultural equipment industry, where companies like Deere & Company and CNH Global utilize RIM for massive components on their combines. Some of these parts exceed 6 feet in dimension yet weigh only 56 pounds—a testament to RIM's ability to create lightweight, structurally sound components.

The intrinsic strength of polyurethane also permits parts to serve dual roles as both structural and aesthetic components. For large medical equipment manufacturers, this capability has proven invaluable in creating enclosures that combine rigidity with sophisticated visual design.

2. Material Encapsulation Capabilities

RIM provides unique opportunities for encapsulating other materials and components—either to enhance structural integrity or to protect sensitive elements.

The low pressure, low temperature, and highly adhesive nature of RIM polyurethane makes it ideal for encapsulating:

  • Metal reinforcements and frames
  • Electronic components and circuit boards
  • Sensors and wiring harnesses
  • Carbon or glass fibers for added rigidity

Laboratory equipment manufacturers have leveraged this capability to protect proprietary electronics from both competitors and harsh operating environments. By fully encapsulating circuit boards in RIM parts, they achieve both intellectual property protection and functional durability.

3. Exceptional Surface Finish Quality

The low viscosity of RIM components enables precise reproduction of fine details in mold surfaces, resulting in consistently high-quality finishes. For products requiring specific textures or perfect cosmetics, RIM delivers outstanding results.

When color is critical, RIM parts excel at accepting paint or other coatings. This characteristic has made RIM a favorite in the automotive industry, where painted parts must perfectly match adjacent metal components while maintaining flexibility and impact resistance.

For parts with simpler geometries, in-mold painting provides another advantage. Unlike high-temperature processes that would damage in-mold finishes, RIM allows designers to specify that polyurethane paint be applied to the mold before injection. This creates a finished outer skin that bonds permanently with the main shot, resulting in parts that require minimal post-molding finishing.

4. Variable Wall Thickness Design Freedom

One of RIM's most valuable features is the ability to create parts with dramatically varying wall thicknesses. While thermoplastic molding and thermoforming struggle with significant thickness variations, RIM can easily fill cavities ranging from 1/8-inch to over 1-1/4 inches in the same part.

Medical device manufacturers have capitalized on this capability to create components with complex geometries, reinforcing ribs, molded-in bosses, and wall thicknesses varying from 0.09 to 0.40 inches—all in a single part. This design freedom allows engineers to optimize material use, placing thickness only where structurally necessary.

5. Cost-Effective Tooling Solutions

The economic advantages of RIM begin with lower tooling costs. The low temperatures and pressures inherent in the process allow for aluminum or even epoxy molds, unlike the hardened steel tools required for traditional injection molding.

For production volumes between 100-5,000 parts annually, these lower tooling costs significantly improve project economics. Aluminum molds are not only less expensive to produce but also easier to modify, reducing lead times and simplifying design iterations. In fact, for production runs under 500 parts, RIM typically delivers the lowest total unit cost of any comparable molding process.

Critical Design Considerations for RIM Molding

Successful RIM part design requires understanding the process's unique characteristics and limitations. These design considerations ensure optimal part quality, performance, and manufacturability:

Material Selection

RIM offers various material options to meet specific performance requirements. The most common include:

  • Solid RIM systems: Homogeneous materials with consistent properties throughout, excellent for parts requiring uniform structural integrity.
  • Structural foam RIM: Self-skinning materials with lower-density cores, providing excellent strength-to-weight ratios and stiffness.
  • Composite RIM: Systems reinforced with glass fibers or other materials for enhanced mechanical properties.

Material selection directly impacts physical properties including flexural modulus, impact resistance, heat deflection temperature, and chemical resistance. Working with experienced RIM processors can help identify the optimal material for specific applications.

Wall Thickness Guidelines

While RIM accommodates variable wall thicknesses better than other processes, certain guidelines maximize part quality:

  • Minimum thickness: Generally 1/8 inch (3.2mm) for solid systems and 1/4 inch (6.4mm) for structural foam
  • Maximum thickness: Up to 1-1/2 inches (38mm), though excessively thick sections may cause longer cycle times or uneven shrinkage
  • Transitions: Wall thickness transitions should be gradual with a slope of at least 1:25 to avoid stress concentrations

For optimal part performance, design with consistent wall thickness where possible, using ribs and corrugations for additional strength rather than increased thickness.

Rib Design and Configuration

Ribs provide structural reinforcement while minimizing material use. For RIM parts:

  • Rib thickness: Should not exceed 75% of the nominal wall thickness for solid systems and 100% for foamed systems to prevent sink marks
  • Rib height: Can be up to 3 times the wall thickness for optimal stiffening effect
  • Rib spacing: Minimum spacing should equal nominal wall thickness
  • Direction: Align ribs with the direction of material flow to minimize air entrapment

When designing ribs for composite RIM materials, consider that glass reinforcement may not fully penetrate tight areas, potentially creating resin-rich regions with different mechanical properties.

Draft Angles and Parting Lines

Proper draft angles ensure easy part removal from the mold:

  • Minimum draft: 1/2° for surfaces up to 1 inch deep
  • Additional draft: Add 1/4° of draft for each additional inch of depth
  • Textured surfaces: Require increased draft, typically 1-1.5° for light textures and 2-3° for deeper textures

Position parting lines carefully to minimize visible flash and optimize mold filling. Whenever possible, locate parting lines along edges or non-visible surfaces.

Bosses and Assembly Features

Bosses provide attachment points for fasteners or other components:

  • Connection to walls: Design bosses with connecting ribs to facilitate air removal during molding
  • Wall thickness: Around boss holes should not exceed 75% of nominal wall thickness for solid systems or 100% for foamed systems
  • Base radii: Include minimum 1/16-inch radius at the base of bosses for solid systems and 1/8-inch for foamed systems

For parts requiring assembly, consider designing in snap-fits, living hinges, or other integration features that capitalize on RIM's flexibility and design freedom.

Partnering with an Experienced RIM Processor

The success of any RIM molding project depends heavily on collaboration with knowledgeable manufacturing partners. Experienced RIM processors bring valuable insights to the design process, helping to optimize parts for both performance and manufacturability.

Key considerations when selecting a RIM partner include:

  • Design expertise: Look for companies with engineering-led approaches and willingness to engage early in the design process
  • Material knowledge: Partners should offer guidance on material selection based on performance requirements
  • Quality systems: ISO certification or equivalent quality management systems ensure consistent production
  • Post-processing capabilities: Many RIM parts benefit from finishing operations like painting, drilling, or assembly
  • Track record: Experience with similar applications demonstrates capability to handle complex projects

Engaging with RIM experts early in development allows for design optimization that maximizes the process's advantages while avoiding potential manufacturing issues.

When to Choose RIM Molding

RIM proves most beneficial for projects with specific characteristics:

  • Production volumes: Optimal for annual production between 100-5,000 parts
  • Part size: Particularly advantageous for large components (over 2 feet in any dimension)
  • Design complexity: Ideal for parts with varying wall thicknesses, intricate details, or complex geometries
  • Material requirements: Well-suited for applications requiring specific performance properties like chemical resistance, impact strength, or thermal insulation
  • Tooling budget: Perfect when steel tooling costs would be prohibitive
  • Development timeline: Faster tool production accelerates time-to-market

By understanding these parameters, engineering and procurement teams can make informed decisions about whether RIM represents the optimal manufacturing solution for specific parts or products.

The Future of RIM Molding Design

The RIM industry continues to evolve with new materials and capabilities. Recent innovations include advanced polyolefin thermoset systems like Poly-DCPD, which offer exceptional durability, strength, high-temperature tolerance, and lighter weight compared to traditional RIM materials.

As manufacturing technologies advance, RIM's position as a bridge between prototyping and high-volume production grows increasingly valuable. For companies seeking design freedom, cost-effective production, and exceptional part performance, RIM represents a compelling manufacturing solution worth serious consideration.

Next Steps

Reaction Injection Molding offers engineers and designers unprecedented freedom to create parts that would be impractical or impossible with other manufacturing methods. By understanding RIM's unique capabilities—from variable wall thickness to material encapsulation and cost-effective tooling—manufacturers can leverage this technology to overcome complex design challenges.

RIM provides a versatile solution that balances performance, aesthetics, and cost-effectiveness for companies seeking to optimize their manufacturing approach, especially for low to medium production volumes. By partnering with experienced RIM processors and applying sound design principles, manufacturers can unlock new possibilities for product innovation and market differentiation.
