The Best Applications for RIM Molding: Where Low Pressure Delivers High Performance

When engineers face challenging part requirements—large housings, impact-resistant components, or complex geometries with tight budgets—traditional manufacturing often falls short. Reaction Injection Molding emerges as the manufacturing solution that transforms these constraints into competitive advantages.

RIM's fundamental approach differs from conventional injection molding by combining two liquid components at low pressure and temperature. This process unlocks capabilities that make certain applications not just feasible, but economically superior to alternatives.

Why RIM Excels Where Other Manufacturing Processes Struggle

The economics of RIM become compelling when production volumes sit between 100 and 5,000 parts annually. Aluminum tooling costs 60-70% less than hardened steel injection molds, while lead times shrink from 12-16 weeks to 4-6 weeks. These advantages compound when part complexity increases or size exceeds what conventional molding can handle efficiently.

Material flexibility stands as another key differentiator. Engineers can specify Shore A elastomers for impact absorption or rigid structural foams exceeding 80 Shore D for load-bearing applications—all processed through the same equipment with minimal changeover requirements. See our RIM materials.

The low-pressure environment enables design freedoms impossible with high-pressure processes: variable wall thickness from 0.125" to over 1", complex geometries without expensive sliding cores, and direct encapsulation of sensitive electronics without thermal damage.

Large-Scale Housing and Enclosure Applications

Medical equipment manufacturers have discovered RIM's sweet spot in large diagnostic instrument housings. These applications typically require substantial size—often exceeding 24" in any dimension—combined with precise tolerances and professional aesthetics. Traditional sheet metal fabrication demands extensive welding and finishing, while large injection molds become prohibitively expensive for the volumes involved.

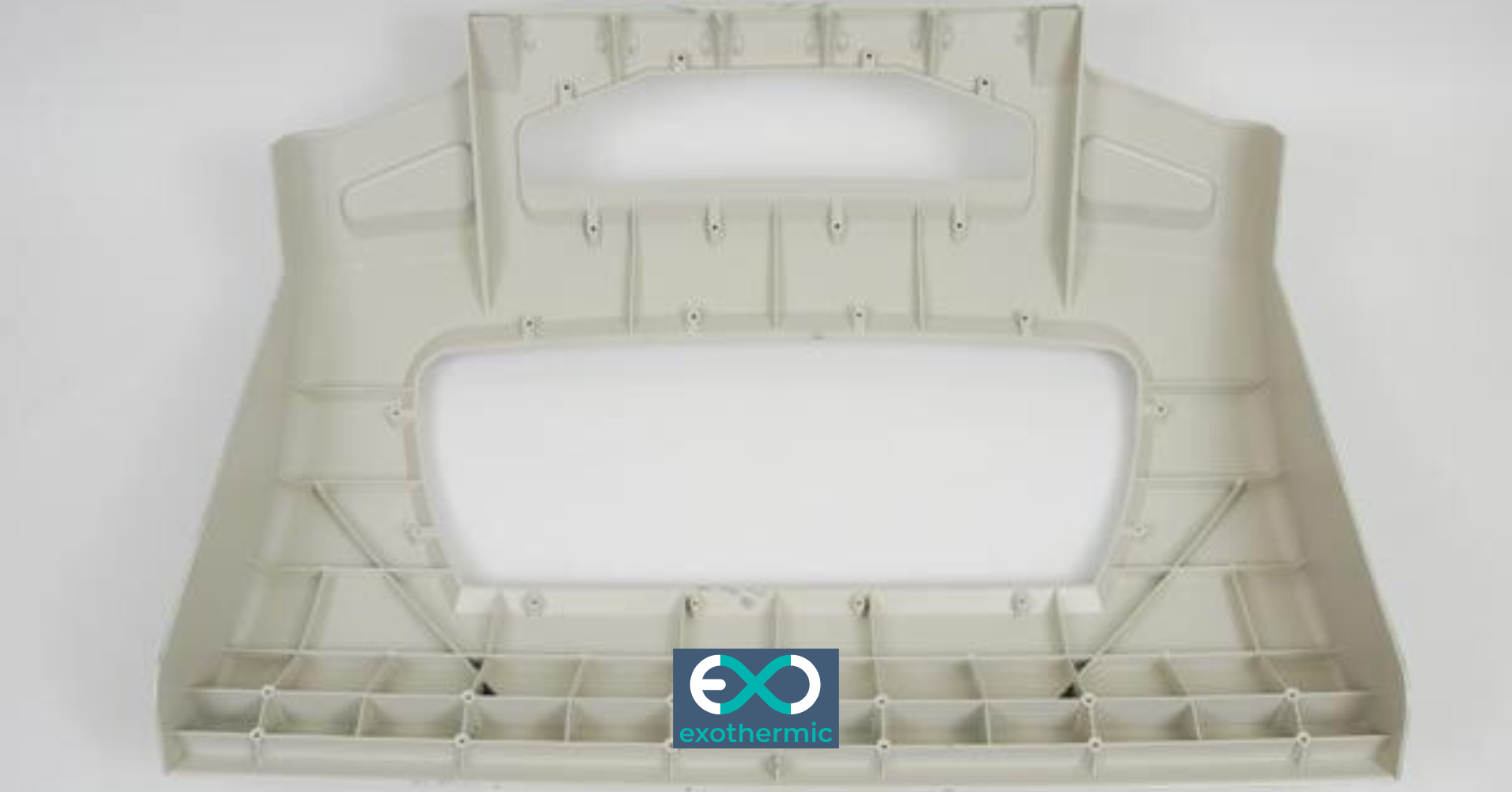

RIM delivers one-piece housings with integrated mounting bosses, cable management features, and cosmetic surfaces ready for painting. The process consolidates what might otherwise require 8-12 fabricated components into a single molded piece, eliminating assembly labor and potential failure points.

Agricultural equipment represents another compelling application area. Combine harvesters and similar machinery require large protective covers that withstand weather extremes and mechanical impact. Parts measuring 6' x 6' or larger can be produced with structural ribbing molded directly into the design, creating lightweight yet durable assemblies that outperform traditional materials while reducing overall machine weight. Learn more about large plastic parts.

High-Impact and Protective Components

Impact resistance becomes critical in applications ranging from robotic systems to military equipment. RIM materials can be formulated to absorb substantial impact energy while maintaining structural integrity. The material's inherent toughness, combined with design flexibility for energy-absorbing features, creates components that protect sensitive internal systems.

Aerospace ground support equipment benefits significantly from this capability. Protective housings for delicate instruments must survive harsh handling while maintaining precise internal protection. RIM enables engineers to design impact zones with varying wall thickness and integrated cushioning features that would be impossible to manufacture economically through other processes.

Defense applications leverage RIM's ability to create lightweight yet robust protective enclosures. Electronic warfare systems, communication equipment, and portable instrumentation require housings that meet stringent military specifications while remaining field-portable. The material's chemical resistance and dimensional stability across temperature extremes make it ideal for these demanding environments.

Electronics Encapsulation and Environmental Protection

The low processing temperature of RIM—typically under 160°F—enables direct encapsulation of temperature-sensitive electronics. Circuit boards, sensors, and wiring harnesses can be positioned in the mold and completely surrounded during the molding process, creating seamless environmental protection that exceeds traditional assembly methods.

Marine instrumentation exemplifies this application perfectly. Navigation electronics and fish finders require absolute waterproof integrity while maintaining access to controls and displays. RIM encapsulation creates a monolithic barrier that eliminates potential leak paths while allowing for integrated mounting features and cable connections.

Automotive electronics in harsh environments benefit similarly. Engine compartment components face temperature extremes, chemical exposure, and vibration that challenge conventional enclosure methods. RIM encapsulation provides comprehensive protection while enabling weight reduction compared to traditional metal housings.

Complex Geometry and Consolidation Opportunities

Part consolidation represents one of RIM's most powerful applications. Components that traditionally require multiple injection molded pieces, subsequent assembly, and potential sealing can often be consolidated into single RIM parts. This approach eliminates assembly labor, reduces inventory complexity, and improves overall system reliability.

Laboratory automation equipment frequently presents these opportunities. Fluid handling systems, sample processing modules, and analytical instrument components often feature complex internal passages, mounting provisions, and structural requirements that would typically demand multi-piece construction. RIM enables single-piece solutions that integrate all required features while maintaining the chemical compatibility necessary for laboratory environments.

The process accommodates deep draws, undercuts, and intricate surface features without the expensive tooling modifications required for conventional injection molding. Engineers gain design freedom to optimize for function rather than manufacturing constraints, often resulting in superior performance and reduced system complexity.

Advanced Material-Specific Applications

Advanced RIM materials expand application possibilities beyond traditional polyurethane systems. Poly-DCPD offers exceptional chemical resistance and high-temperature capability, making it suitable for industrial applications involving harsh chemical environments or elevated operating temperatures.

These materials prove particularly valuable in renewable energy applications. Wind turbine components, solar mounting systems, and energy storage enclosures require materials that maintain properties through decades of environmental exposure. The inherent UV resistance and dimensional stability of advanced RIM materials provide long-term performance that justifies initial material costs through reduced maintenance and replacement requirements.

Making the RIM Application Decision

RIM proves most valuable when applications combine several challenging requirements: larger size, moderate production volumes, complex geometry, and demanding performance specifications. The process shines when conventional alternatives require compromises in design, economics, or performance.

Engineers should consider RIM when facing tooling budget constraints for complex parts, when part consolidation could eliminate assembly operations, or when encapsulation requirements exceed what conventional methods can achieve. The combination of design freedom, economic efficiency, and material performance creates opportunities that transform manufacturing challenges into competitive advantages.

The key lies in recognizing applications where RIM's unique capabilities align with real-world requirements, creating value that extends far beyond simple cost comparisons with alternative processes.
