The Complete Guide to RIM Part Manufacturing

In today's manufacturing landscape, finding the proper process for custom parts can be challenging. When balancing cost considerations, design flexibility, and production volume, many engineers discover that Reaction Injection Molding (RIM) offers compelling advantages over traditional manufacturing methods.

RIM has become the go-to solution for large, complex parts produced in low to medium volumes.

What is Reaction Injection Molding?

Reaction Injection Molding is a specialized manufacturing process in which two liquid components—an isocyanate (A-side) and a polyol (B-side)—are mixed and injected into a mold where they chemically react to form a thermoset polyurethane part.

Unlike thermoplastic injection molding, which requires high temperatures and pressures to force melted plastic into steel molds, RIM operates at much lower temperatures (90°-105°F) and pressures (50-150 psi). The low viscosity of the component materials (500-1500 centipoise) allows molds to fill quickly and completely, even for large, complex parts.

This unique combination of chemical reaction and low-pressure molding gives RIM significant advantages for specific applications.

The Five Major Advantages of RIM Manufacturing

1. Creation of Very Large Parts

One of the most significant advantages of RIM is its ability to create large parts as a single piece. The low viscosity of the liquid components enables complete filling of large molds, eliminating the need for multiple smaller parts that would require assembly.

Agricultural equipment manufacturers have leveraged this capability to produce components like combine rear shields measuring 6 feet by 6 feet while weighing only 56 pounds. Medical equipment manufacturers have produced single panels as large as 87 inches by 67 inches—among the largest single-shot RIM parts ever molded.

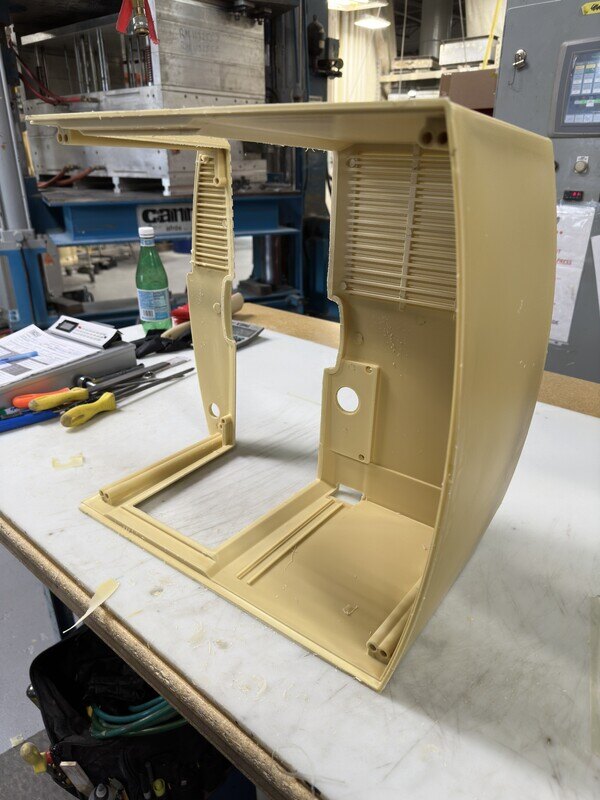

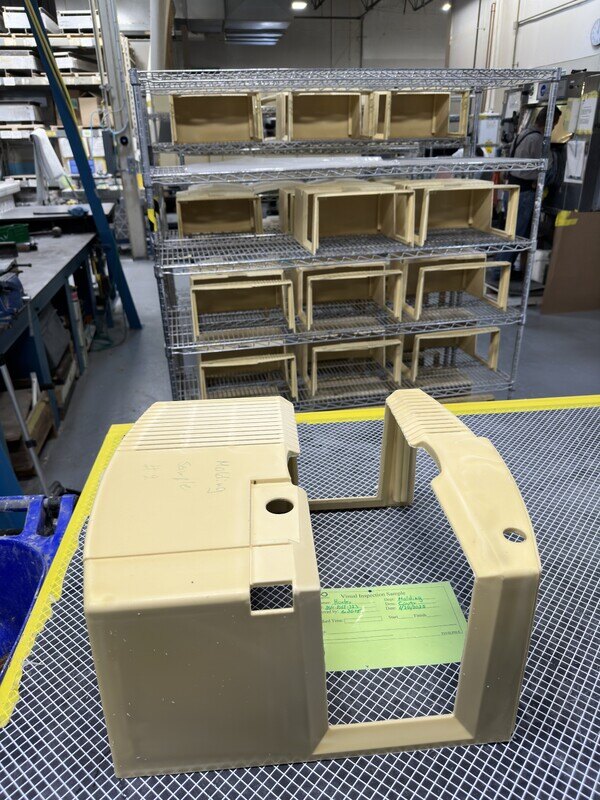

The flowability of the polyurethane components also allows for intricate internal ribbing and support structures, making parts that are both large and structurally sound without requiring additional reinforcement.

2. Design Freedom with Variable Wall Thickness

Unlike many other molding processes, RIM accommodates significant variations in wall thickness within the same part. Because the polyurethane components remain liquid during mold filling, a 1/8-inch wall section fills just as easily as a 1-1/4-inch section.

This design freedom allows engineers to:

• Reinforce high-stress areas with thicker walls
• Reduce weight in non-critical areas
• Create complex internal structures
• Optimize parts for both strength and weight

Medical device manufacturers have successfully produced door assemblies with wall thicknesses varying from 0.09 to 0.40 inches in a single part, complete with complex curves, raised details, reinforcing ribs, and molded-in bosses—a challenge that would be extremely difficult with traditional molding processes.

3. Material Encapsulation Capabilities

The low pressure and temperature of the RIM process make it ideal for encapsulating other materials and components within the part. This capability allows for enhanced structural strength or protection of encapsulated items.

RIM polyurethane's excellent adhesion properties enable designers to embed:

• Metal reinforcements for added rigidity
• Electronics and circuit boards
• Wiring harnesses
• Sensors and controls
• Threaded inserts

A laboratory equipment manufacturer leveraged this capability when designing a high-speed centrifuge. By encapsulating an aluminum and steel internal shell within the polyurethane, they achieved the strength requirements while maintaining a complex geometry and high-quality cosmetic finish. The same approach allowed them to protect proprietary electronics by fully encapsulating circuit boards.

4. Superior Surface Finish

The low viscosity of RIM materials allows for excellent reproduction of fine surface details. Parts can be finished to high-quality standards, including:

• Class A automotive-grade finishes
• Custom textures
• Specialized coatings
• In-mold paint application

For applications requiring color consistency and durability, RIM parts take paint exceptionally well. This has made the process particularly popular in the automotive industry, where parts must match painted metal while maintaining flexibility and impact resistance.

5. Lower Tooling Costs and Faster Time to Market

Perhaps one of the most compelling advantages of RIM is its significantly lower tooling costs compared to traditional injection molding. The low molding pressures allow for the use of aluminum or even epoxy molds instead of hardened steel, reducing both cost and lead time.

For production volumes between 100 and 5,000 parts annually, RIM tooling can cost 50-60% less than comparable steel molds for thermoplastic injection molding. This makes RIM particularly well-suited for:

• New product launches with uncertain volumes
• Medical or specialized equipment with moderate production requirements
• Parts that may require design iterations
• Products with short life cycles

Additionally, aluminum molds can be modified more easily and at a lower cost than steel molds, providing greater flexibility throughout the product lifecycle.

The Complete RIM Manufacturing Process

Understanding the RIM manufacturing process helps engineers and designers leverage its advantages while optimizing part design for manufacturability. The typical production flow includes:

1. Part Design and Engineering

Close collaboration between the design team and RIM manufacturer is essential for optimizing part performance. The engineering team evaluates:

• Material selection based on performance requirements
• Wall thickness and structural design
• Placement of ribs and reinforcements
• Mold design and gating configuration
• Potential for part consolidation
• Opportunities for material encapsulation

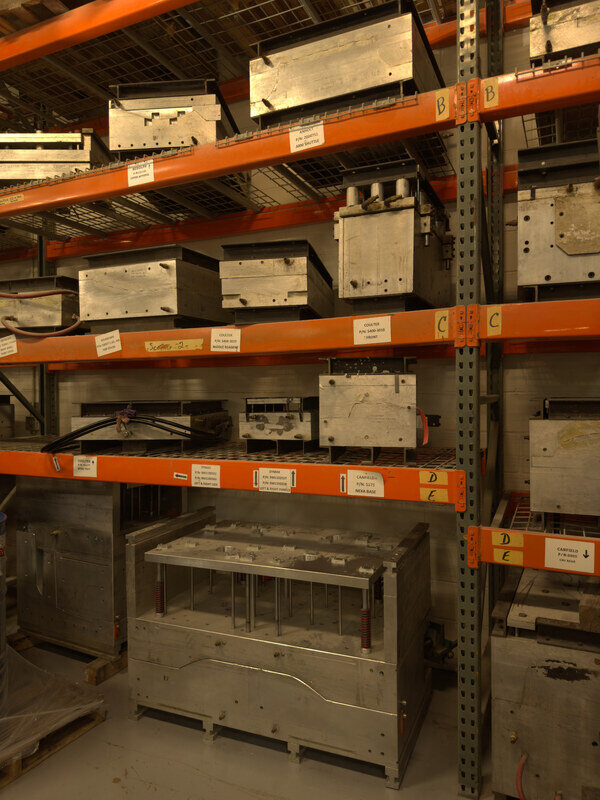

2. Mold Production

Unlike steel molds for thermoplastic injection, RIM molds are typically machined from aluminum, which offers:

• Lower material costs
• Faster machining time
• Excellent thermal conductivity
• Easier modifications if design changes are needed

For extremely low volumes or prototypes, epoxy molds may be used to further reduce costs. The mold includes:

• A cavity side (typically the external surface)
• A core side (typically the internal features)
• Gating system for material flow
• Venting to allow air escape
• Cooling channels for temperature control

3. Material Preparation

The two liquid components—isocyanate and polyol—are prepared in day tanks, where they are:

• Maintained at precise temperatures
• Kept homogeneous through recirculation or mixing
• Precisely metered for the correct ratio
• Delivered to the mixing head at controlled pressures

Modern RIM systems often include computer-controlled metering to ensure consistent part quality.

4. Molding Process

During the actual molding process:

1. The mold is cleaned and treated with release agent
2. The mold is closed and clamped
3. The two liquid components are mixed at high pressure in the mixing head
4. The mixed material flows through the gate into the mold cavity
5. The material undergoes an exothermic (heat-generating) chemical reaction
6. The part solidifies within the mold
7. The part is demolded after achieving adequate "green strength"

Depending on part size and complexity, the molding cycle typically takes between 60 and 120 seconds—much faster than many competitive processes for large parts.

5. Post-Molding Operations

After demolding, the part undergoes a series of finishing operations that may include:

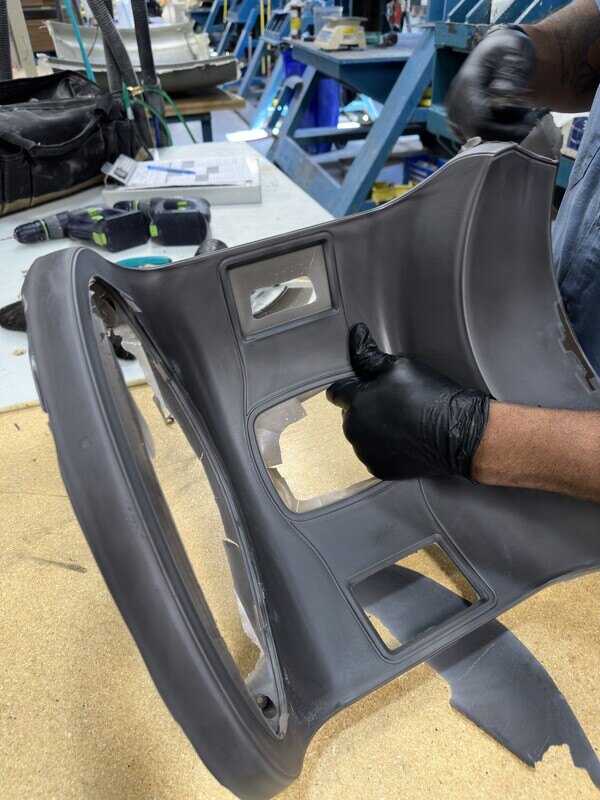

1. Trimming and Sanding: Removing excess material, flash, and parting lines
2. CNC Operations: Adding precision features, holes, or other details
3. Wet Blasting: Removing release agents and preparing surfaces for finishing
4. Patching: Filling any surface imperfections

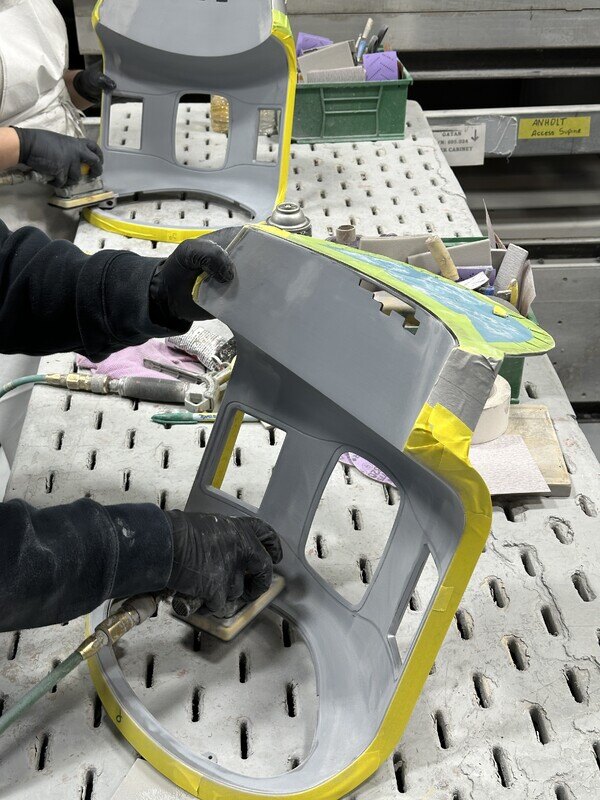

5. Surface Preparation: Sanding and cleaning to prepare for painting

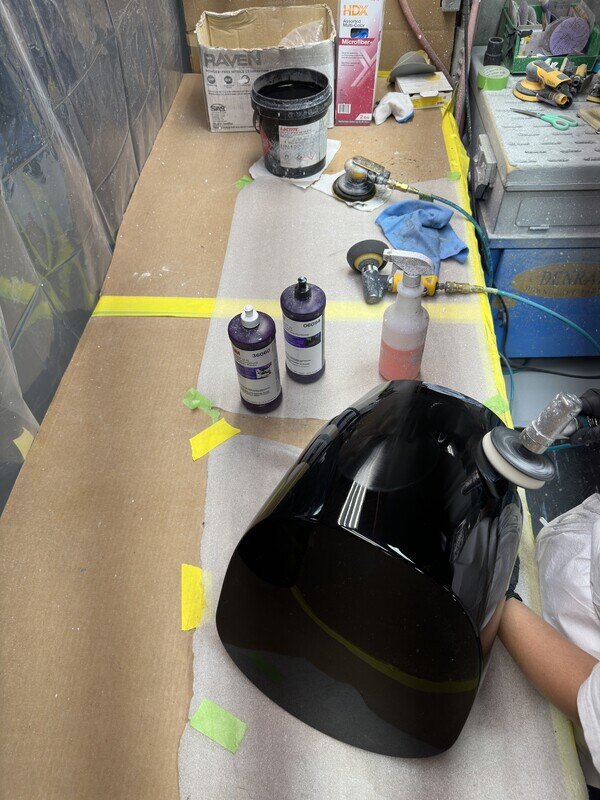

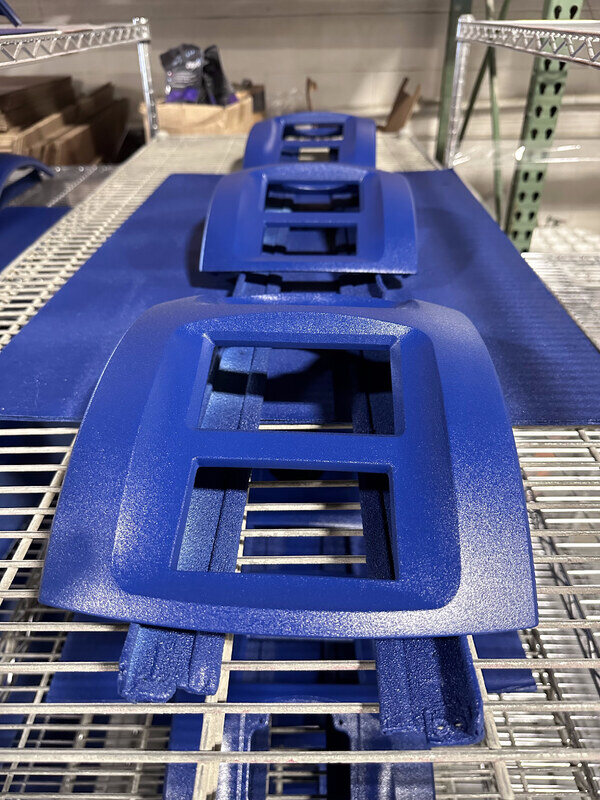

6. Painting: Applying primer and finish coats for protection and aesthetics
7. Assembly: Installing inserts, electronics, or other components
8. Final Inspection: Verifying dimensions, appearance, and functionality

The specific operations depend on the part requirements, with quality checks performed at each stage to ensure specifications are met.

Material Properties and Performance

Through careful formulation of the polymer system, the properties of RIM polyurethane can be tailored to meet specific application requirements.

Key Material Properties

Poly-DCPD is an advanced polymer system that delivers exceptional performance characteristics:

• Lightweight: 7-10% lighter than traditional epoxy and polyurethane alternatives
• Enhanced Durability: Superior strength-to-weight ratio with improved fatigue performance
• Impact Resistance: Excellent resistance to cracking and deformation under impact
• Chemical Resistance: Exceptional resistance to acids, bases, and industrial solvents
• Environmental Resilience: Outstanding performance in hot, wet environments
• Low Water Absorption: Hydrophobic properties prevent moisture penetration
• Thermal Stability: Excellent operating temperature window, including high-temperature resistance

These properties make RIM parts ideal for applications in demanding environments where traditional plastics might fail.

Ideal Applications for RIM Manufacturing

RIM molding excels in specific applications where its unique advantages provide the greatest value:

Medical Equipment

Medical device manufacturers benefit from RIM's ability to create large housings with complex internal features while maintaining precise tolerances. The excellent surface finish and ability to withstand harsh cleaning agents make RIM ideal for:

• Laboratory instruments
• Diagnostic equipment
• Centrifuges and analyzers
• Patient-facing equipment

Transportation Equipment

The automotive and transportation industries leverage RIM's impact resistance and surface quality for:

• Body panels and fenders
• Bumper systems
• Interior components
• Agricultural equipment enclosures
• Specialty vehicle components

Military and Defense

For the military, the durability and environmental resistance of RIM parts make them well-suited for:

• Equipment housings
• Communication systems
• Vehicle components
• Specialized containers

Industrial Equipment

RIM's ability to produce large, durable parts finds industrial applications in:

• Machine housings and covers
• Control panels
• Material handling equipment
• Specialized industrial components

Renewable Energy

The lightweight strength and weather resistance of RIM parts are valuable in:

• Wind turbine components
• Solar energy housings
• Battery enclosures
• Outdoor equipment cabinets

Cost Considerations and ROI

When evaluating RIM against alternative renewable equipment manufacturing processes, consider these key economic factors:

Tooling Investment

RIM tooling typically costs 50-60% less than comparable steel molds for thermoplastic injection molding. This lower initial investment:

• Reduces financial risk for new product launches
• Allows capital to be allocated to other aspects of product development
• Makes production economically viable at lower volumes
• Shortens the payback period for tooling investment

Production Volumes

RIM is most economically advantageous for annual production volumes between 100 and 5,000 parts. Below 100 units, urethane casting or other low-volume processes may be more cost-effective; above 5,000 units, traditional injection molding often becomes more economical due to faster cycle times.

Part Size and Complexity

The economic advantage of RIM increases with part size and complexity. For large parts with complex geometries, variable wall thicknesses, or encapsulated components, RIM often remains the most cost-effective solution even at higher volumes.

Total Cost of Ownership

Beyond direct production costs, RIM offers advantages in:

• Reduced assembly costs through part consolidation
• Lower inventory costs through on-demand production
• Faster time to market with shorter tooling lead times
• Greater design flexibility allowing for product optimization

Choosing a RIM Manufacturing Partner

Selecting the right RIM manufacturing partner is crucial for project success. Key factors to consider include:

Technical Expertise

Look for a partner with:

• Deep understanding of polyurethane chemistry
• Experience in mold design and fabrication
• Capabilities in part design optimization
• Knowledge of finishing and secondary operations

Quality Systems

Ensure your partner maintains:

• ISO certification for quality management
• Documented process controls
• Comprehensive inspection capabilities
• Material traceability

Production Capabilities

Evaluate their:

• Press sizes and tonnage capacity
• Material handling systems
• Finishing capabilities
• Assembly and testing facilities

Collaborative Approach

The best partners offer:

• Design assistance and material selection guidance
• Proactive problem-solving
• Regular communication and project updates
• Continuous improvement initiatives

Is RIM Right for Your Application?

Reaction Injection Molding offers compelling advantages for specific applications, particularly those requiring:

• Large, complex parts
• Variable wall thicknesses
• Encapsulated components
• High-quality surface finish
• Low to medium production volumes

By understanding the capabilities and limitations of the RIM process, engineers and product designers can make informed decisions about whether it's the right manufacturing solution for their specific requirements.

For companies producing between 100 and 5,000 parts annually that need the design freedom and performance characteristics that RIM provides, it often represents the optimal balance of cost, quality, and flexibility in the modern manufacturing environment.

Whether you're developing medical equipment, transportation components, industrial housings, or specialized devices, RIM's unique combination of design flexibility, material performance, and economic advantages makes it a manufacturing technology worth serious consideration.
